Nonlinear Equations

Rootfinding

Bisection, Newton's Method, and Convergence Analysis.

1

Motivation

Not all problems are linear systems ($Ax=b$). Many real-world problems require solving non-linear equations $f(x)=0$.

Examples

  • Where should wireless access points be placed?
  • Where do two curved surfaces intersect?
  • What is the subsurface geology in a basin?

The Solution Strategy

We cannot always find a closed-form solution. Instead, we iterate, getting closer to the answer with each step.

Problem Statement

Given a function $f(x)$, find $x$ such that $f(x) = 0$.

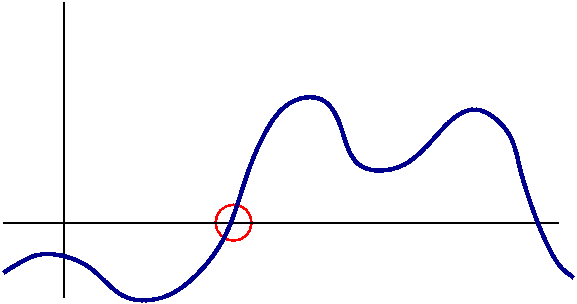

Root Finding Visualization
2

Bracketing Methods

Concept

A root is bracketed on interval $[a,b]$ if $f(a)$ and $f(b)$ have opposite signs.

if (sign(f(a)) != sign(f(b)))
   Root exists in [a, b]

Note: Use `sign()` instead of multiplication to avoid underflow.

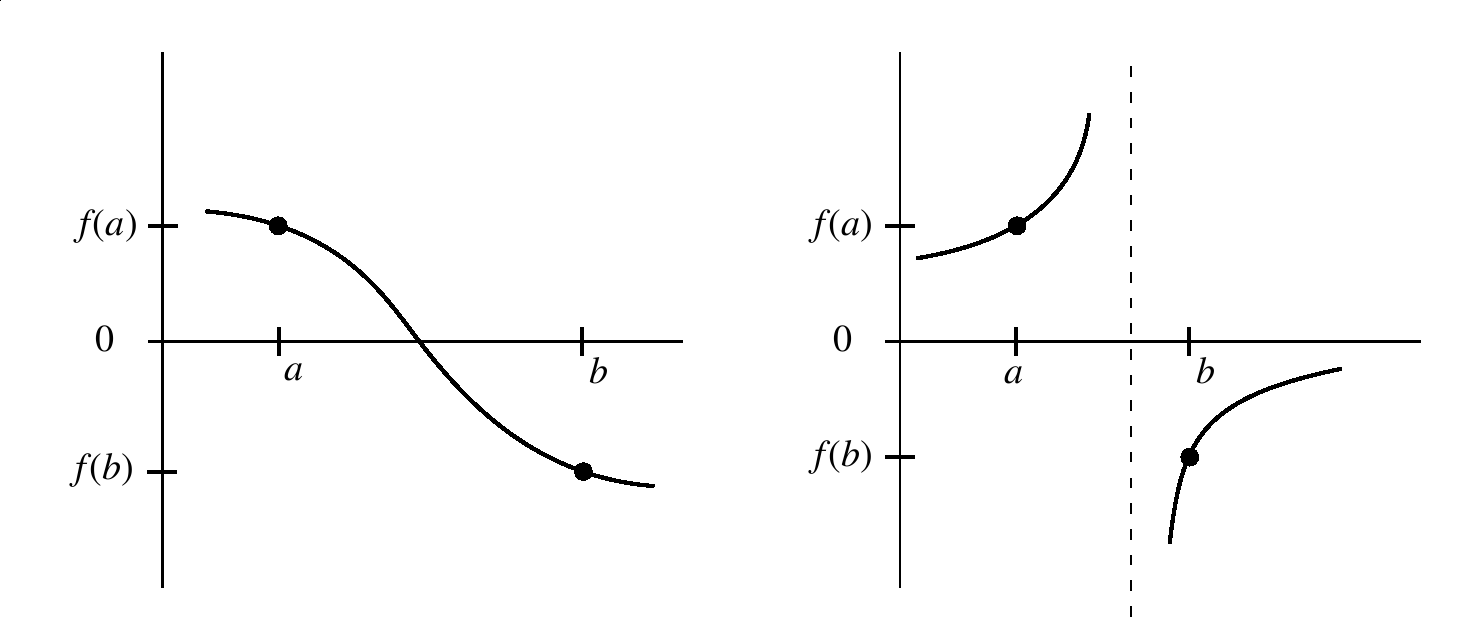

Bracketing Visualization

The Bisection Method

Given a bracket, halve the interval while keeping the root inside.

  1. Calculate midpoint: $x_m = a + (b-a)/2$
  2. Check sign of $f(x_m)$.
  3. Update bracket: if sign matches $f(a)$, set $a = x_m$, else $b = x_m$.
  4. Repeat.

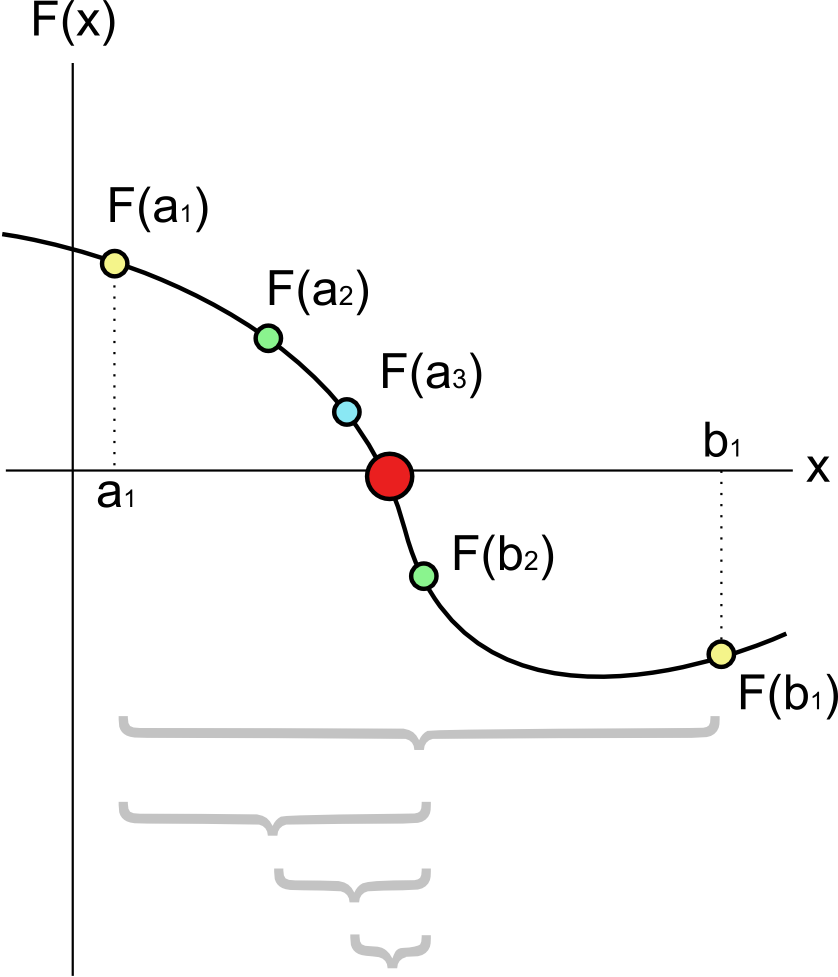

Bisection Method Diagram

Convergence Analysis

The interval size halves at each step: $\frac{\delta_n}{\delta_0} = 2^{-n}$.

Linear Convergence: Adds roughly 1 bit of accuracy per iteration (slow but reliable).

3

Newton's Method

Uses the slope (derivative) $f'(x)$ to project a tangent line to the x-axis for the next guess.

$x_{k+1} = x_k - \frac{f(x_k)}{f'(x_k)}$

Newton's Method Diagram

Comparison

Method Convergence Pros Cons
Bisection Linear Guaranteed to converge if bracketed. Slow.
Newton Quadratic Extremely fast near root. Needs $f'(x)$. Can diverge.

When Newton Fails

If $f'(x_k) \approx 0$ (tangent is horizontal), the next guess shoots off to infinity.

Newton Failure Diagram
4

Convergence Criteria

How do we know when to stop?

Check $x$ (Step Size)

|x_k - x_{k-1}| < \delta_x

Good when function is steep.

dx Tolerance

Check $f(x)$ (Residual)

|f(x_k)| < \delta_f

Good when function is flat.

df Tolerance
5

Division without Division

How do computers compute $1/q$ without using division? They use Newton's Method to find the root of a function where limit point is $1/q$, using only subtraction and multiplication.

Reciprocal Approximation Derivation

We want $x = 1/q$. This is the root of $f(x) = \frac{1}{x} - q = 0$.

Newton's Iteration:

\[ x_{k+1} = x_k - \frac{f(x_k)}{f'(x_k)} = x_k - \frac{1/x_k - q}{-1/x_k^2} \] \[ x_{k+1} = x_k + x_k^2(1/x_k - q) = x_k + x_k - q x_k^2 \]
\[ x_{k+1} = x_k(2 - q x_k) \]

This iteration converges quadratically to $1/q$ using only subtraction and multiplication!

Example: Compute $1/3$ ($q=3$)

Bracket: $1/4 < 1/3 < 1/2$. Let initial guess $x_0=1/4$.

  • $x_0 = 1/4$
  • $x_1 = 2(1/4) - 3(1/4)^2 = 1/2 - 3/16 = \mathbf{5/16}$
  • $x_2 = 2(5/16) - 3(5/16)^2 = 160/256 - 75/256 = \mathbf{85/256}$
  • $x_3 = 2(85/256) - 3(85/256)^2 = \mathbf{21845/65536}$

In just 3 steps, we have computed 16 bits of precision for $1/3$.

🧠 Final Challenge +20 XP

Why is Newton's Method considered to have "Quadratic Convergence"?
